Astable CA3030 (CB25140E)

Details
Written by: Newton C. Braga

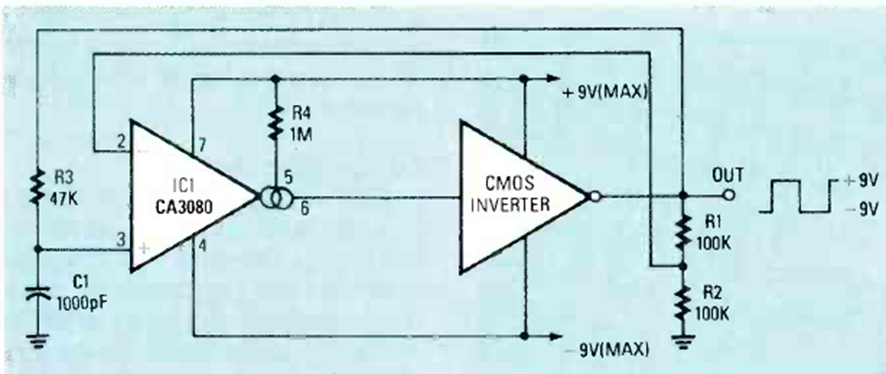

This circuit generates frequencies determined by R3 and C1. We found it in the Radio Electronics magazine of May 1988. The power supply must be symmetrical.
