LM3914 with external reference (CB25111E)

Details
Written by: Newton C. Braga

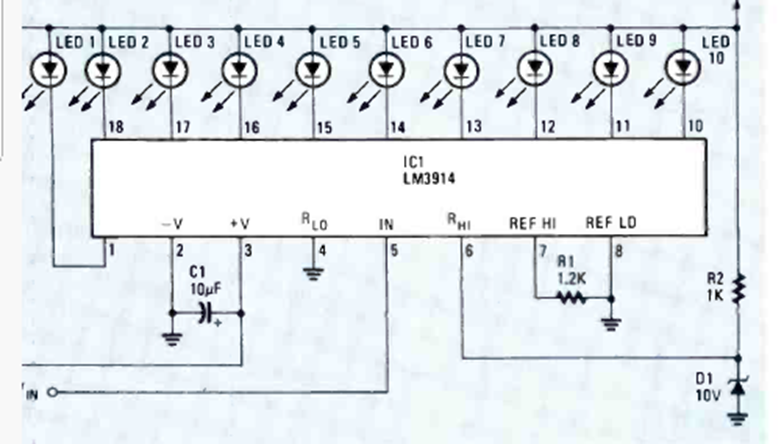

The figure shows how to use the LM3914 Bargraph with an external reference voltage source. The reference cannot be greater than the supply voltage.




| Clique na imagem para ampliar |
