Voice Filter with LM381 (CB25283E)

Details
Written by: Newton C. Braga

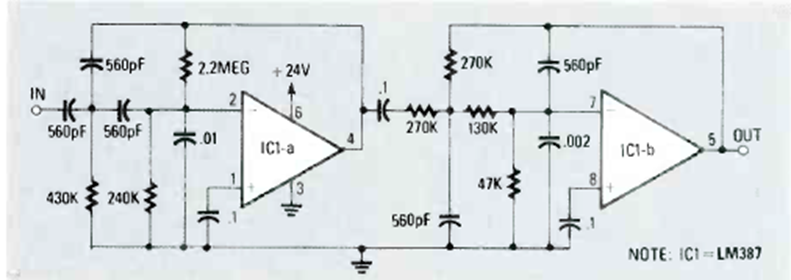

This circuit lets through the 300 Hz to 3kHz range that corresponds to the human voice. We found it in the Radio Electronics magazine of February 1990. The circuit uses both parts of the LM381.
