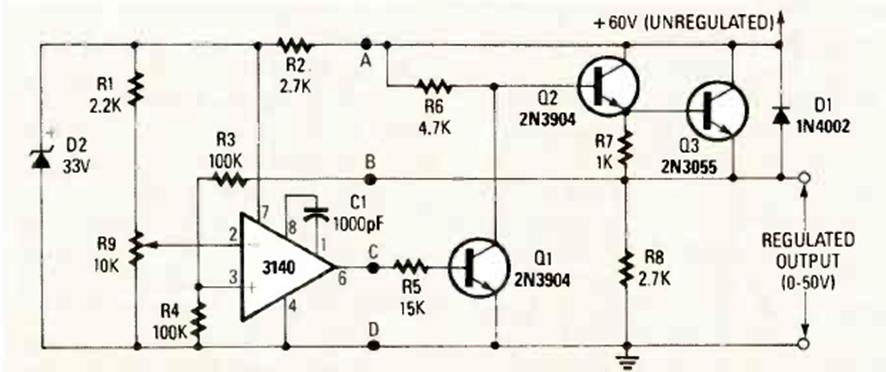

This variable voltage regulator circuit has a power stage capable of supplying currents up to 1 A. The power transistor must be equipped with a heat sink.
| Clique na imagem para ampliar |
Regulator with 0 to 50 V operating at 1 A (CB25188E)
- Details
- Written by: Newton C. Braga
