Scratch Filter with LM381 (CB25282E)

Details
Written by: Newton C. Braga

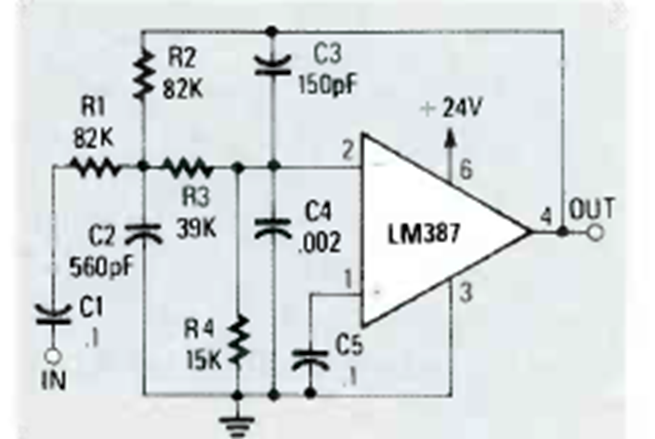

Scratch is the scratching noise that occurs mainly with old records. This high frequency noise is eliminated by the filter found in the February 1990 issue of Radio Electronics magazine.




| Clique na imagem para ampliar |
