Sensitive Comparator CA3080 (CB25137E)

Details
Written by: Newton C. Braga

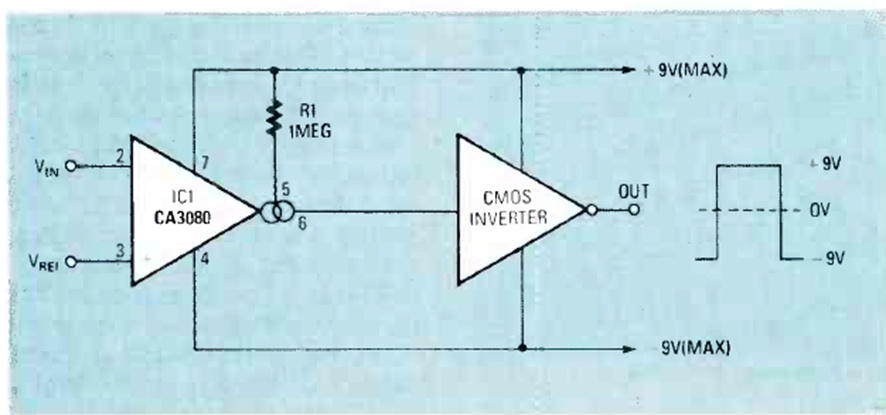

Found in the May 1988 issue of Radio Electronics magazine, this circuit is sensitive to small variations in input voltage. The power supply must be symmetrical.




| Clique na imagem para ampliar |
