3 Gate Ring Oscillator (CB25331E)

Details
Written by: Newton C. Braga

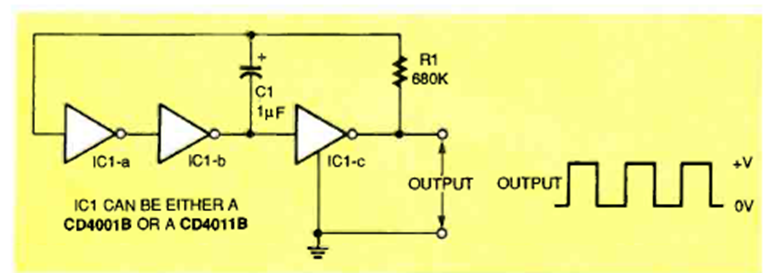

This circuit uses three inverters to generate a rectangular signal whose frequency depends on R1 and C1. The circuit is from a March 1996 Electronics Now.
