Wiper Interval Switch (CB25302E)

Details
Written by: Newton C. Braga

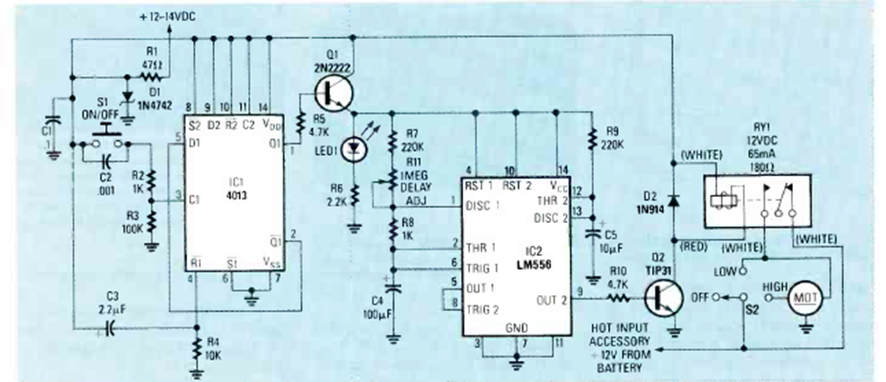

This windshield wiper interval switch was found in the April 1990 issue of Radio Electronics magazine. The circuit uses integrated circuits that are still readily available.




| Clique na imagem para ampliar |
