5-Range Ohmmeter for DVM Module (CB25226E)

Details: Written by: Newton C. Braga

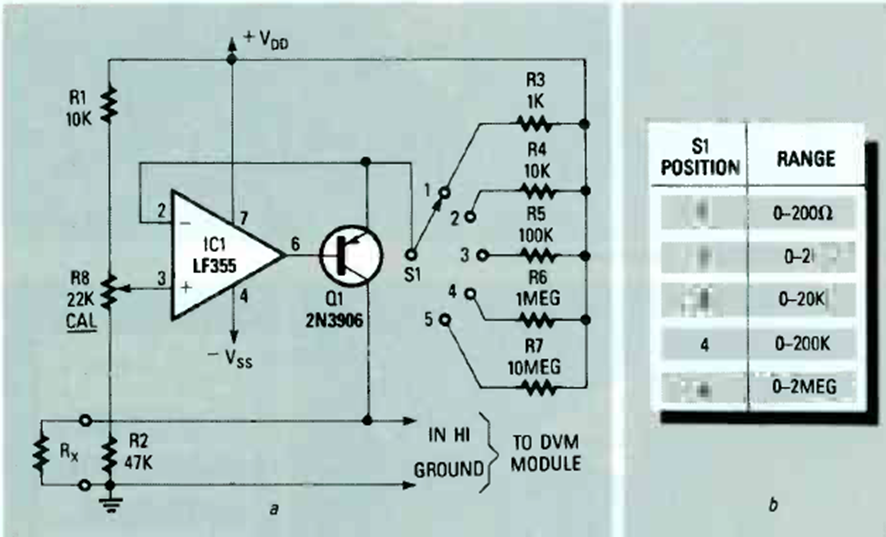

This circuit for a digital module was found in the September 1989 Radio Electronics magazine. The source must be symmetrical to the operational amplifier.
