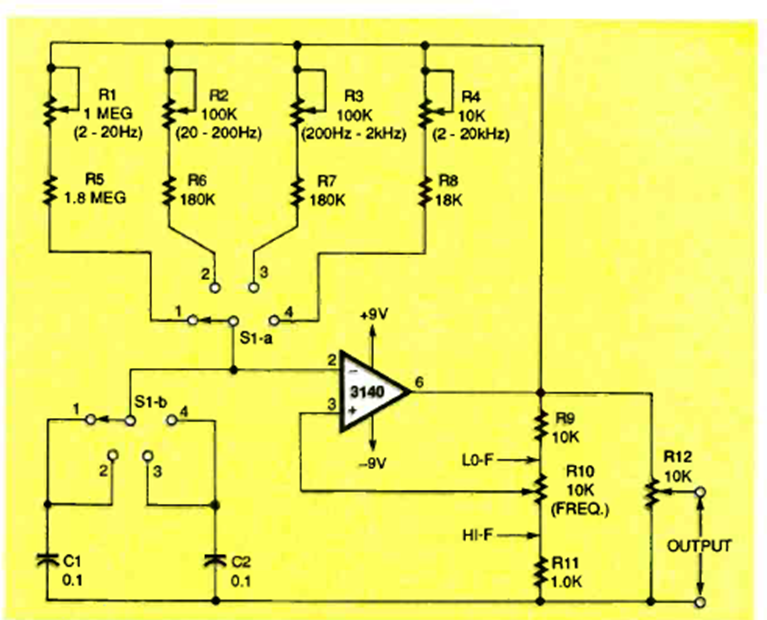

This circuit generates signals in four frequency bands with the threshold values indicated in the diagram. The circuit was found in the March 1996 issue of Electronics Now magazine.
| Clique na imagem para ampliar |
4-Band Rectangular Generator (CB25327E)
- Details
- Written by: Newton C. Braga
