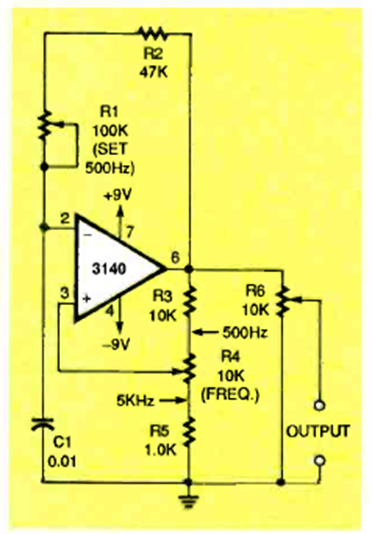

This simple operational amplifier and dual source circuit was found in the March 1996 issue of Electronics Now magazine. The circuit generates a frequency tuned to R1.
5 kHz to 5 kHz Rectangular Generator (CB25326E)
- Details
- Written by: Newton C. Braga
