Fixed Gain Amplifier LM381 (CB25275E)

Details
Written by: Newton C. Braga

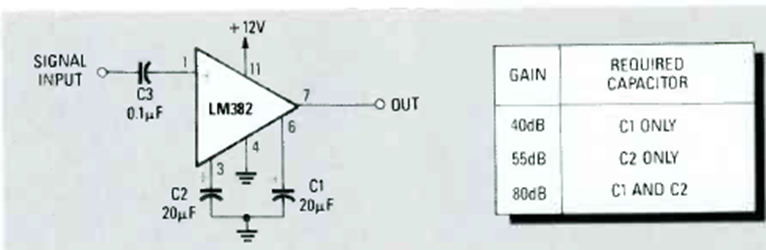

This circuit was found in the February 1990 issue of Radio Electronics magazine. The gain is given by the capacitors according to the table next to the diagram.
