Laser Power Supply (CB25203S)

Details
Written by: Newton C. Braga

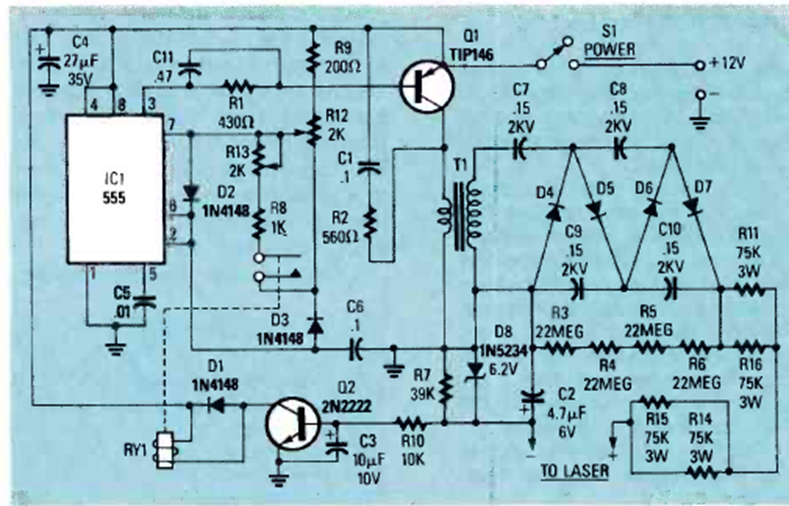

This HeNe laser power supply was found in the March 1989 issue of Radio Electronics magazine. This power supply generated a few thousand volts for gas ignition.




| Clique na imagem para ampliar |
