Siren with 4046 (CB25251E)

Details
Written by: Newton C. Braga

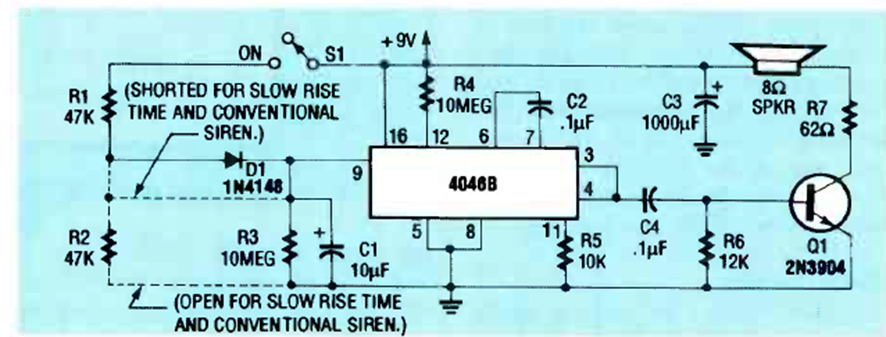

This PLL circuit includes a small amplification stage. We found it in the December 1989 Radio Electronics magazine.
