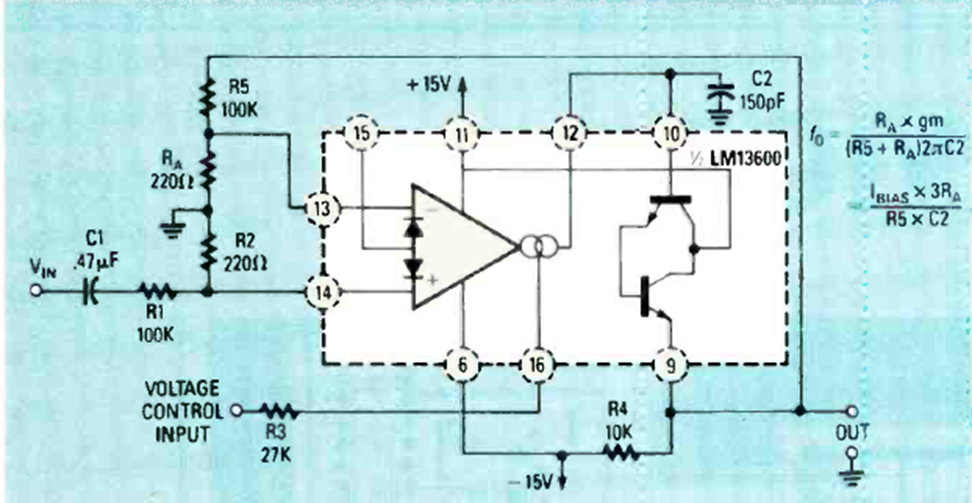

Based on an LM36000 OTA this circuit was found in the July 1988 issue of Radio Electronics magazine. It covers frequencies in the range of 45 Hz to 45 kHz.
| Clique na imagem para ampliar |
Voltage Controlled Low Pass Filter (CB25151E)
- Details
- Written by: Newton C. Braga
