5 to 200 V Flasher (CB25427E)

Details
Written by: Newton C. Braga

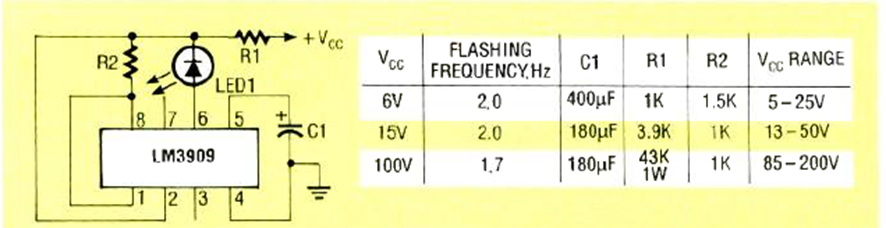

Using the LM3909 this circuit was found in the January 1992 issue of Radio Electronics magazine. Resistor R1 should be chosen according to the table given next to the diagram.




| Clique na imagem para ampliar |
