Expanded-range voltmeter with LM3914 (CB25453E)

Details
Written by: Newton C. Braga

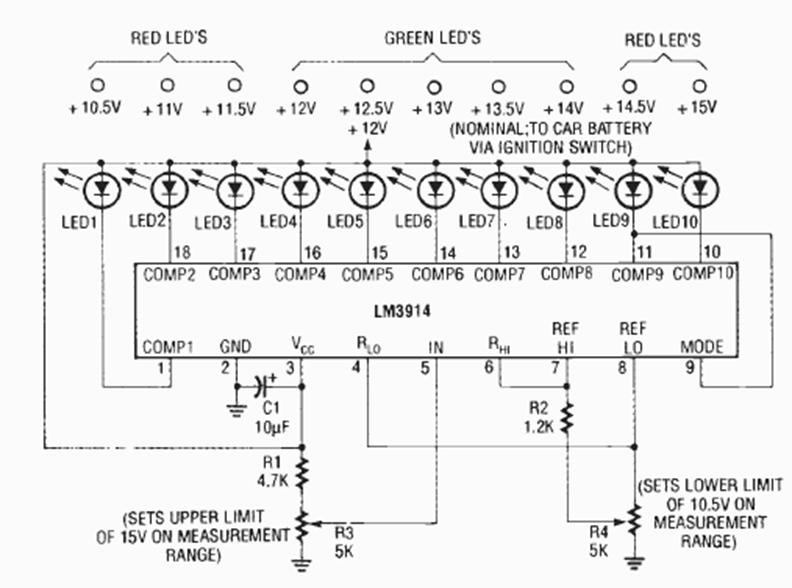

This circuit with different colored indicator LEDs has an expanded scale. We found it in the March 1992 Radio Electronics magazine. For an adjustable range of 0 to 10.5 V.




| Clique na imagem para ampliar |
