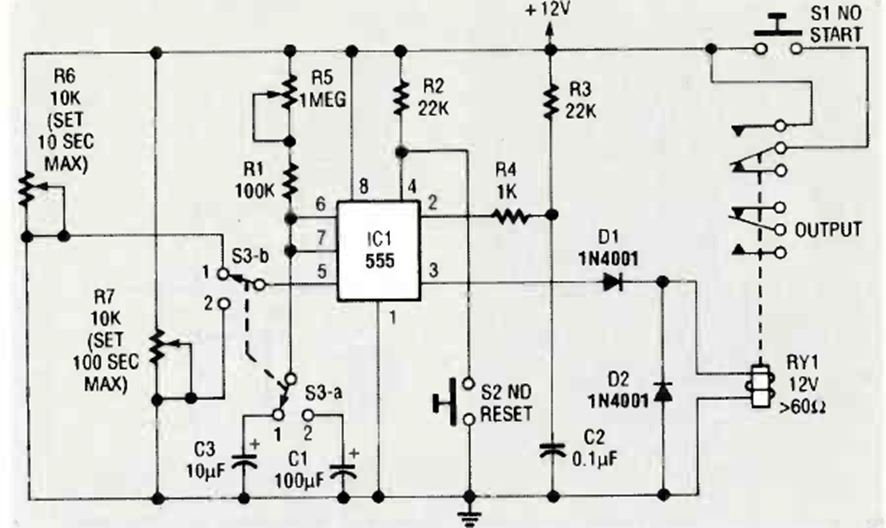

This 100 second timer was found in the September 1992 issue of Radio Electronics magazine. The circuit has two timing ranges and time adjustment at R6.
| Clique na imagem para ampliar |
555 Precision Compensated Timer (CB25501E)
- Details
- Written by: Newton C. Braga
