AC Switch with Triac (CB25858E)

Details
Written by: Newton C. Braga

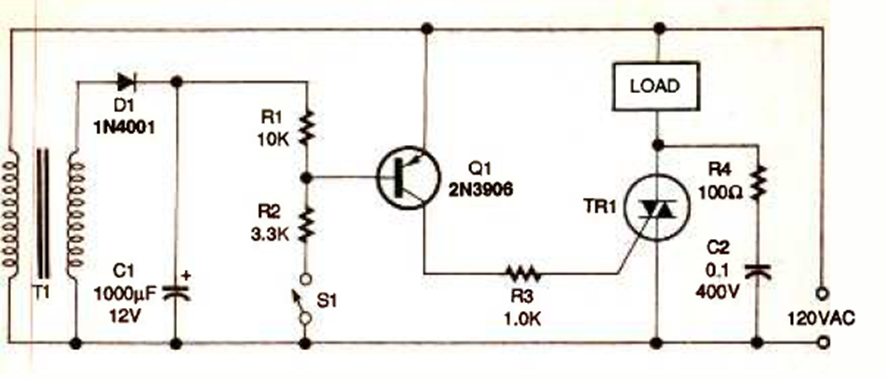

We found this circuit in an Electronics Now magazine from June 1995. The transformer has a primary according to the network and a secondary of 6 to 9 V with 100 mA.




| Clique na imagem para ampliar |
