High Impedance Relay (CB25736E)

Details
Written by: Newton C. Braga

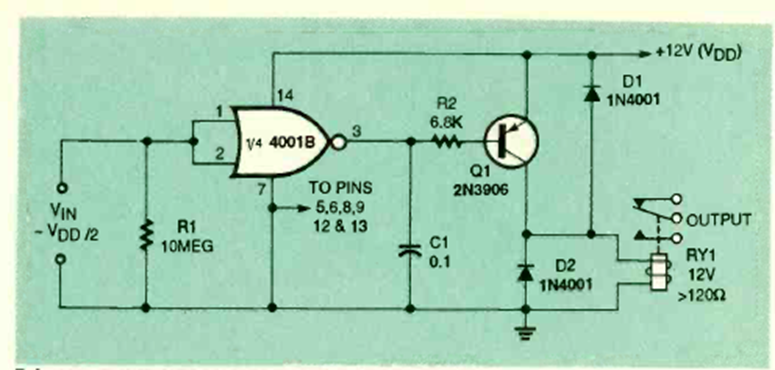

The transistor in this project found in the July 1994 issue of Electronics Now magazine can be any general-purpose type. The circuit is powered by the relay voltage up to 12 V.




| Clique na imagem para ampliar |
