IR Remote Control Receiver (CB25785E)

Details
Written by: Newton C. Braga

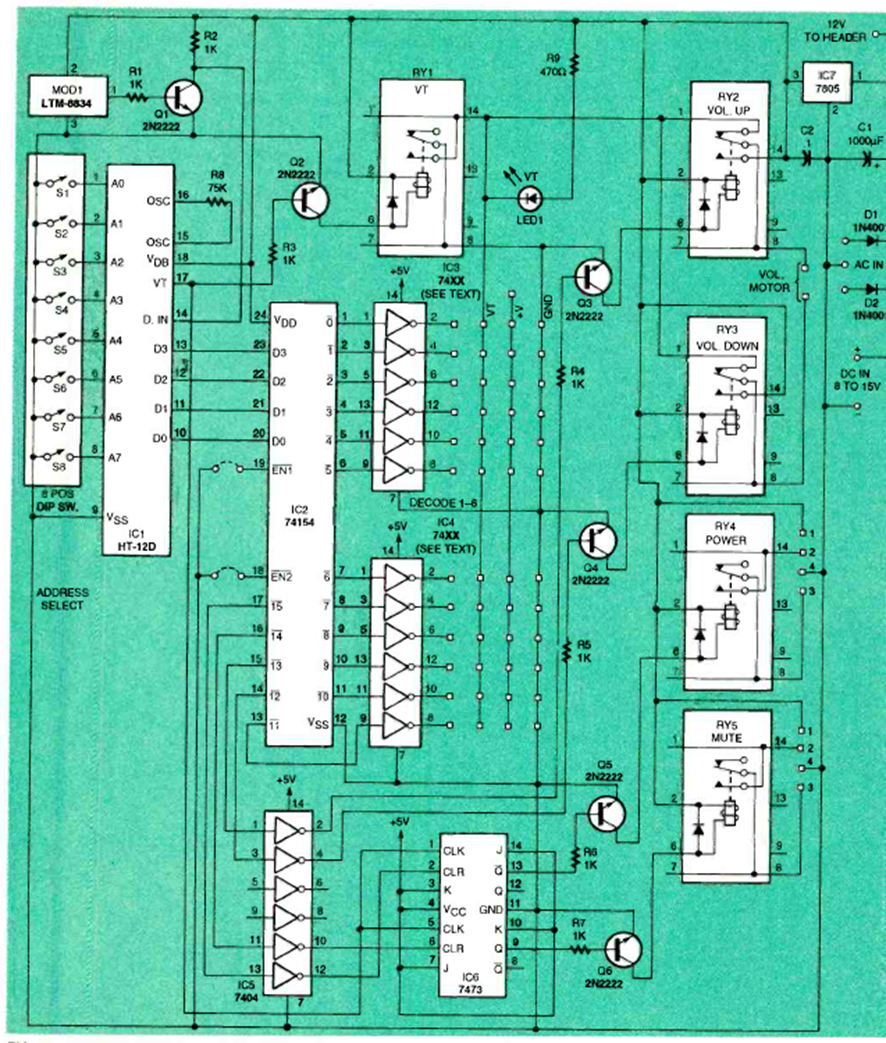

This is the receiver circuit for the previous transmitter. The circuit has a programming key to decode the signals. This key must have the same transmitter code.
