Light Activated Relay 4001 (CB25865E)

Details
Written by: Newton C. Braga

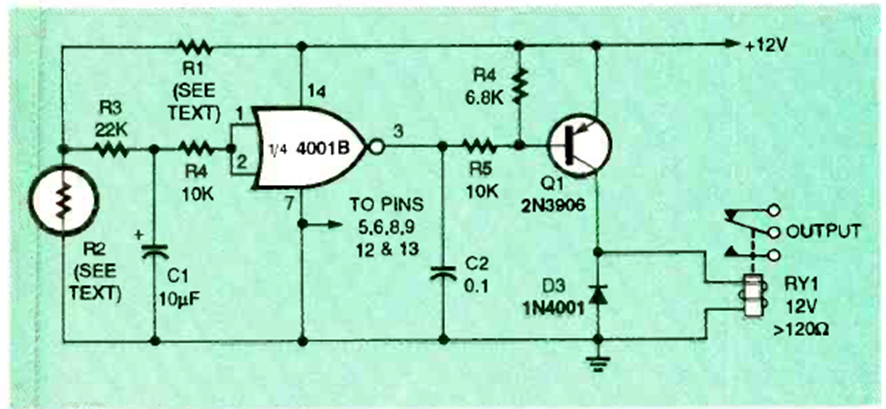

This sensitive circuit was found in the June 1995 Electronics Now magazine. R1 can be from 10k to 1M depending on the desired sensitivity. Power is supplied by the relay.




| Clique na imagem para ampliar |
