Precision Heater Control (CB25880E)

Details
Written by: Newton C. Braga

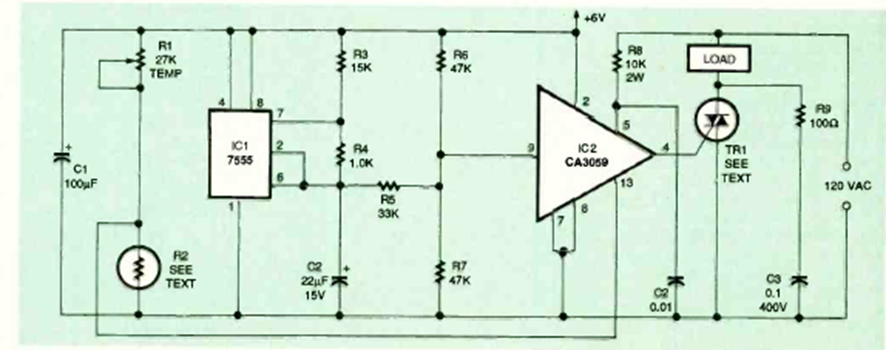

Based on a CA3059 zero-cross switch, this circuit was found in the July 1995 Electronics Now magazine. The circuit is not isolated from the mains.
