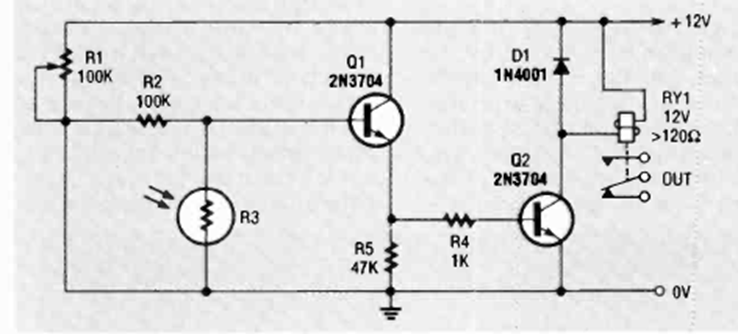

This sensitive circuit with common transistors was found in the Radio Electronics magazine of July 1992. The relay is according to the supply voltage and the sensitivity adjusted in R1. The connection between R1 and ground does not exist (error of the original)
| Clique na imagem para ampliar |
