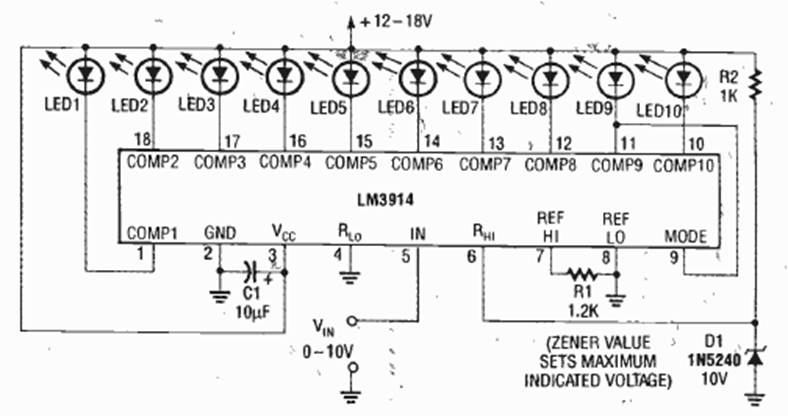

0 to 10 V Voltmeter with LM3914 (CB25451S)

We found this circuit in the March 1992 issue of Radio Electronics magazine. The circuit uses an external reference that can be changed.
