Heater control with CA3058 (CB25879E)

Details
Written by: Newton C. Braga

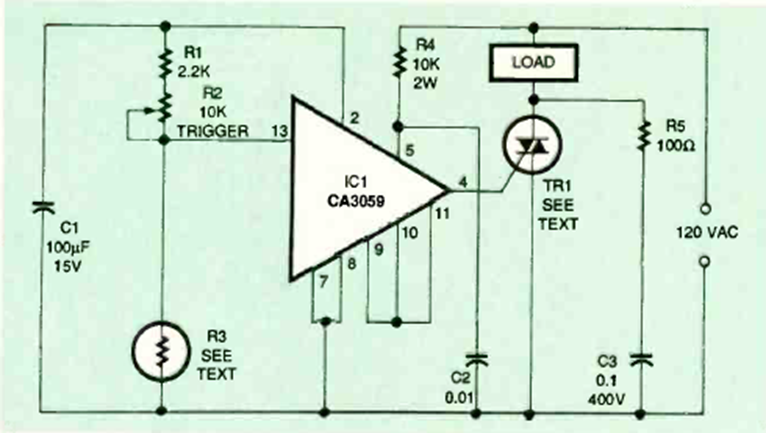

The RCA integrated circuit used in this control is uncommon today. The circuit is from an Electronics Now from July 1995. The sensor determines the value of the adjustment potentiometer.
