5 V Power Supply (CB25403E)

Details
Written by: Newton C. Braga

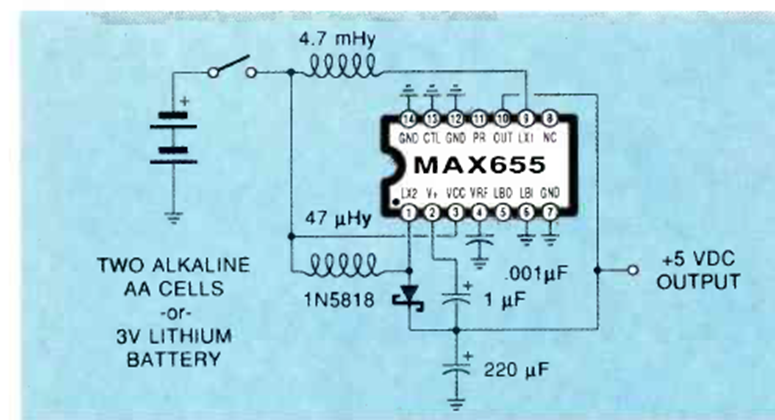

This battery-powered micropower supply was shown in Radio Electronics magazine in 1991. The maximum current is 170 mA. and the integrated circuit is the MAX655 from Maxim.
