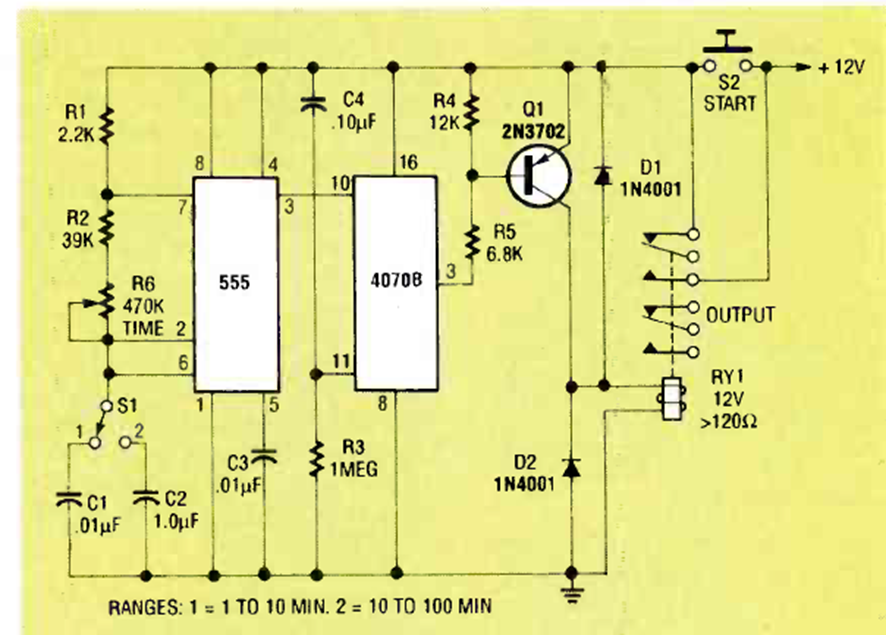

555 2-Range Relay Up to 10 Minutes (CB25535E)

Details
Written by: Newton C. Braga



This circuit was found in the November 1992 issue of Radio Electronics magazine. The circuit has an amplification stage for the relay. The relay is rated at 12 V.




| Clique na imagem para ampliar |
