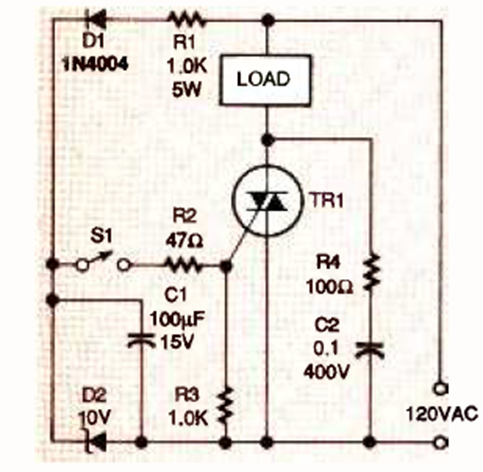

AC Switch with Triac (CB25855E)

Details
Written by: Newton C. Braga



The load controlled by this circuit depends on the triac used. The circuit is from Electronics Now magazine from June 1995.
