555 with direct relay drive (CB25499E)

Details
Written by: Newton C. Braga

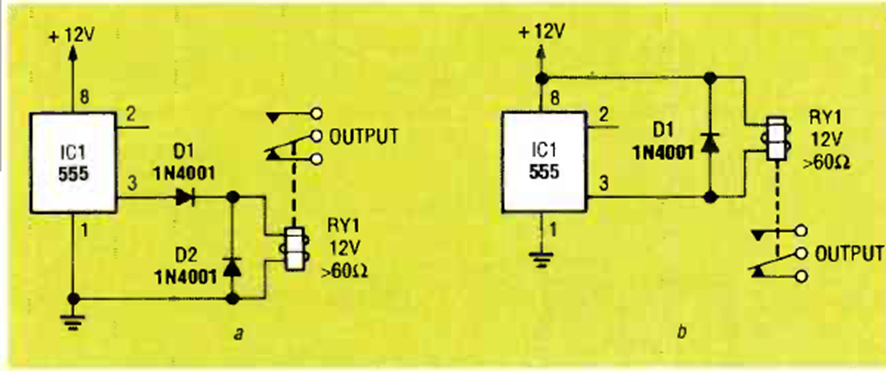

Relays up to 100 mA can be driven by the 555 with the recommended circuit. The circuit is from an article in the September 1992 Radio Electronics magazine.
