565 FM Generator (CB25783E)

Details
Written by: Newton C. Braga

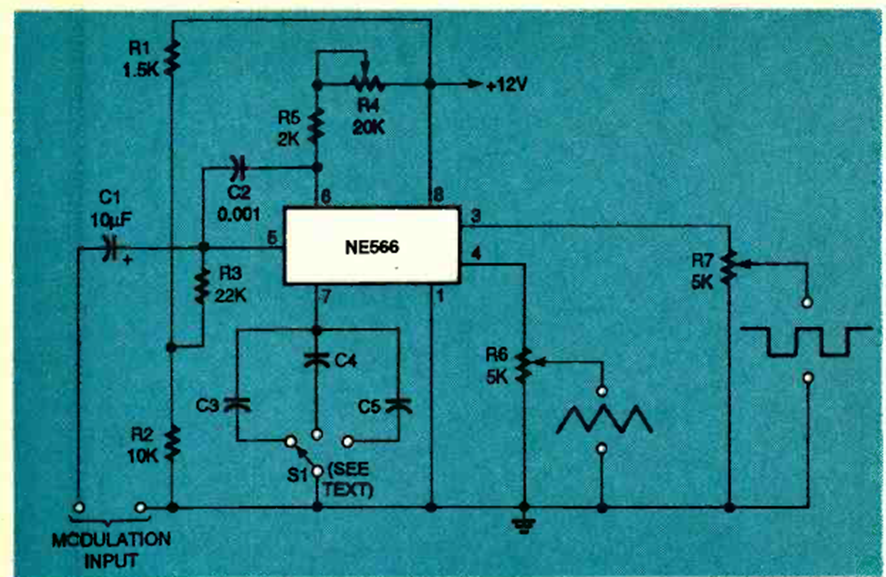

This circuit was found in the November 1994 issue of Electronics Now magazine. The circuit is based on the 566 PLL and generates signals up to about 200 kHz.
