LM741 Voice Filter (CB25936E)

Details
Written by: Newton C. Braga

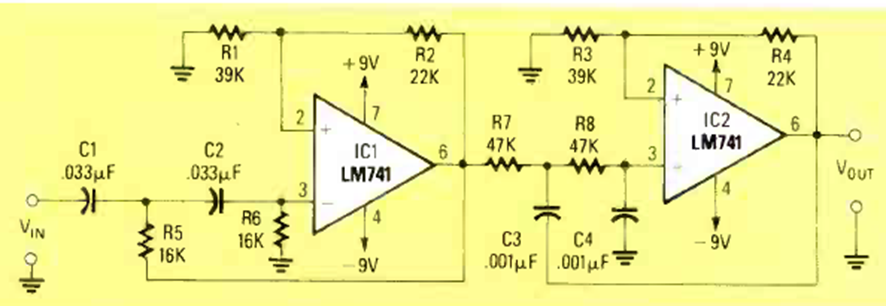

This 300 Hz to 3.4 kHz filter was found in the May 1989 Radio Electronics magazine. The circuit requires a symmetrical power supply.




| Clique na imagem para ampliar |
