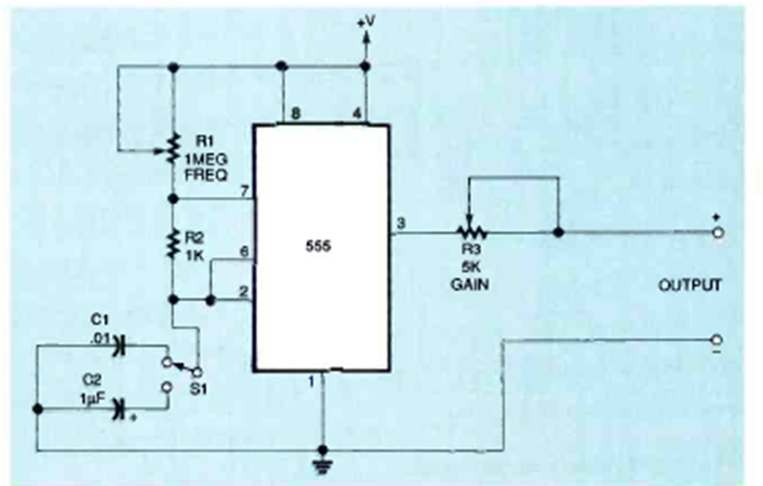

Experimental Signal Generator (CB25828E)

Details: Written by: Newton C. Braga

Ideal for benchtop use, this dual-band circuit was obtained from the 1995 Electronics Now magazine. The circuit can be powered with voltages from 5 to 12 V.

| Clique na imagem para ampliar |
