Current limiter (CB25534E)

Details
Written by: Newton C. Braga

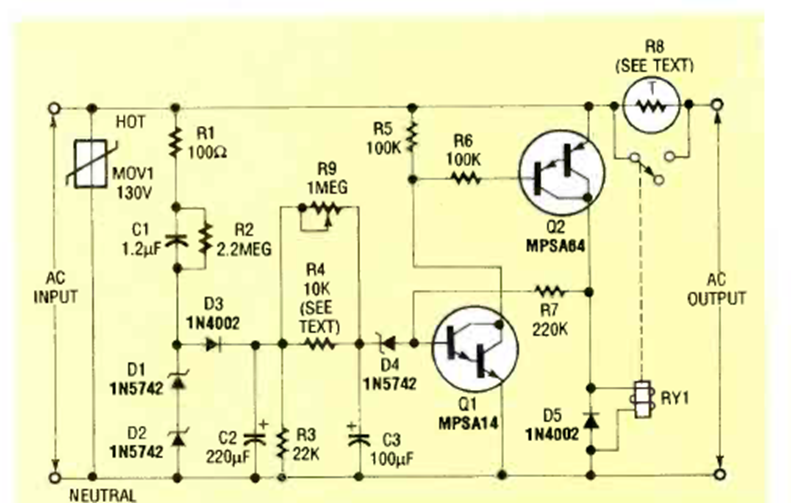

This circuit was found in the December 1992 Radio Electronis magazine. R2 is an NTC, there is a MOV protector or NTC thermistor. The current depends on the thermistor used.
