555 Fixed Period Generator (CB25498E)

Details: Written by: Newton C. Braga

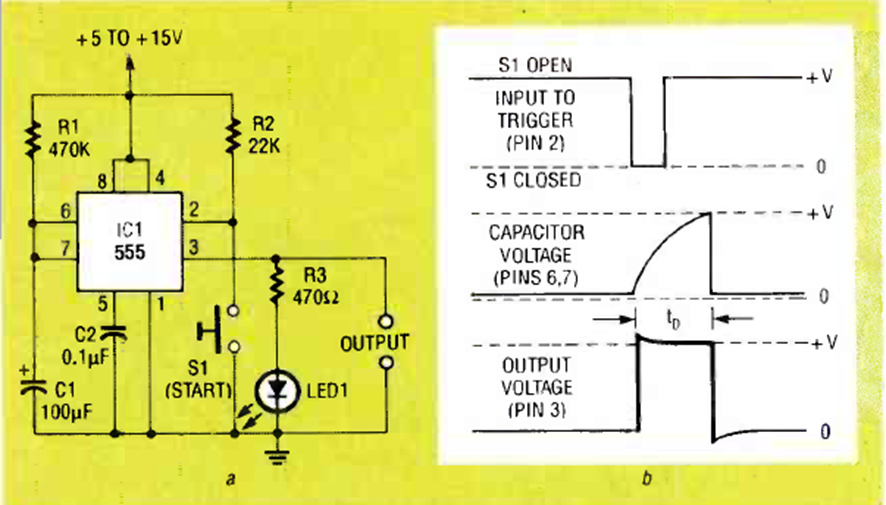

In a September 1992 Radio Electronics article, we found this basic 555 circuit used to generate fixed times. Capacitor C1 and resistor R1 determine the time. The circuit drives an LED.
