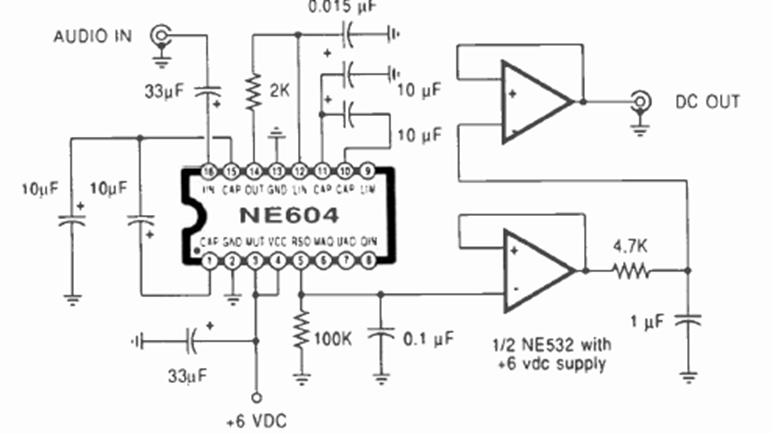

The purpose of this circuit is to measure the intensity of audio signals. We found it in the September 1990 issue of Radio Electronics magazine. The circuit works as a S meter.
| Clique na imagem para ampliar |
Audio Voltmeter (CB25356E)
- Details
- Written by: Newton C. Braga
