Nonlinear Sawtooth Generator (CB25677E)

Details: Written by: Newton C. Braga

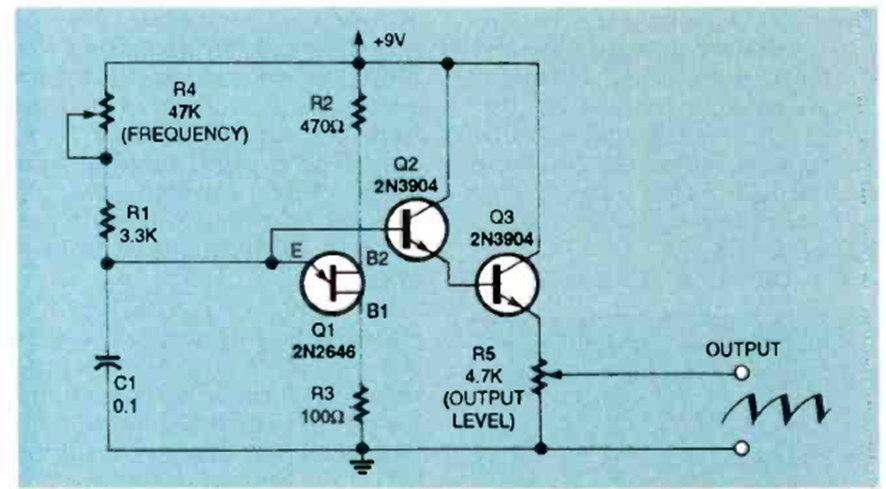

Using one unijunction transistor and two bipolar transistors, this circuit generates a signal from 25 Hz to 3 kHz. The circuit is from Electronics Now magazine, January 0, 1994.

| Clique na imagem para ampliar |
