Traffic Light 4017 (CB25706E)

Details: Written by: Newton C. Braga

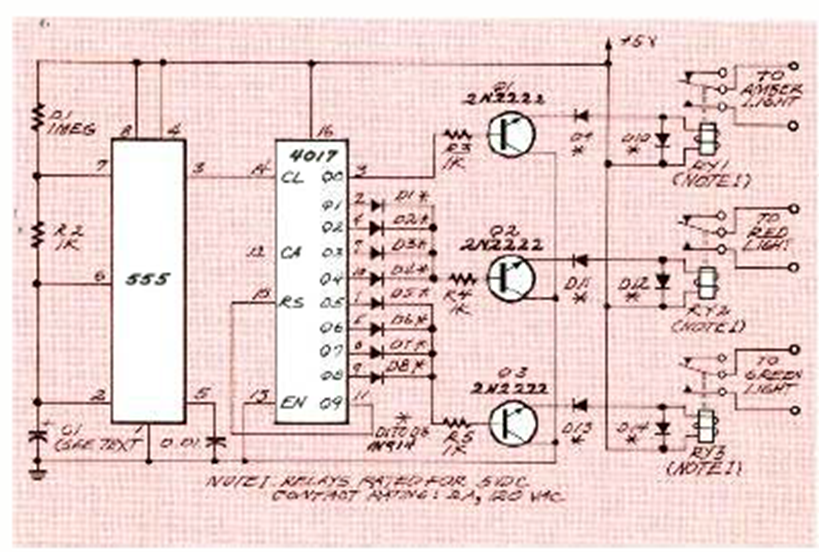

This realistic circuit has longer timings for green and red lights, with shorter timings for yellow. The circuit is from an Electronics Now from May 1994.

| Clique na imagem para ampliar |
