Robot Bug (CB25466E)

Details
Written by: Newton C. Braga

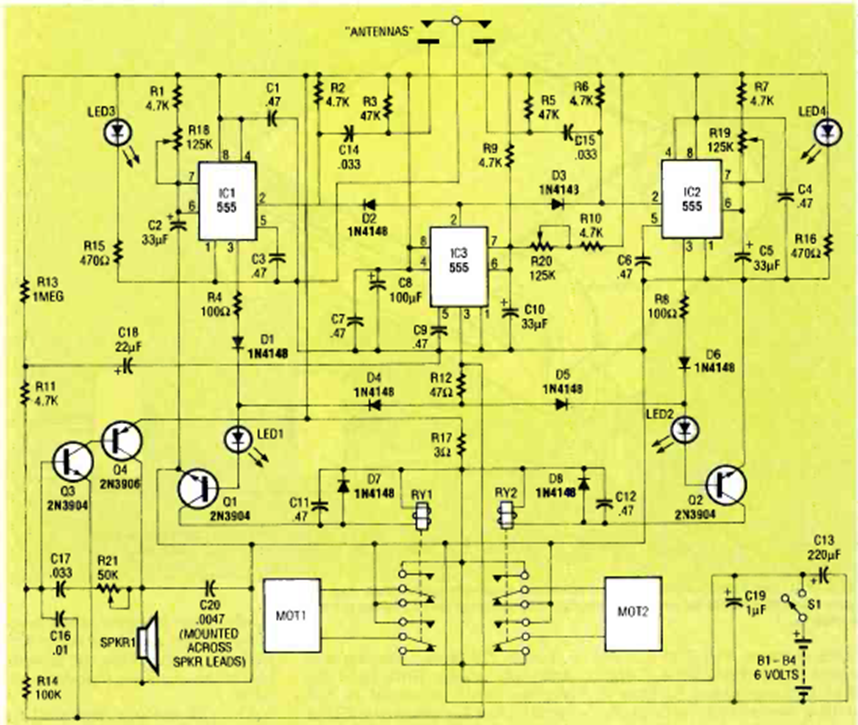

This is the circuit of a robot published in the June 1992 issue of Radio Electronics magazine. The sensors are used to drive 2 motors with reduction gears. The power is provided by batteries.




| Clique na imagem para ampliar |
