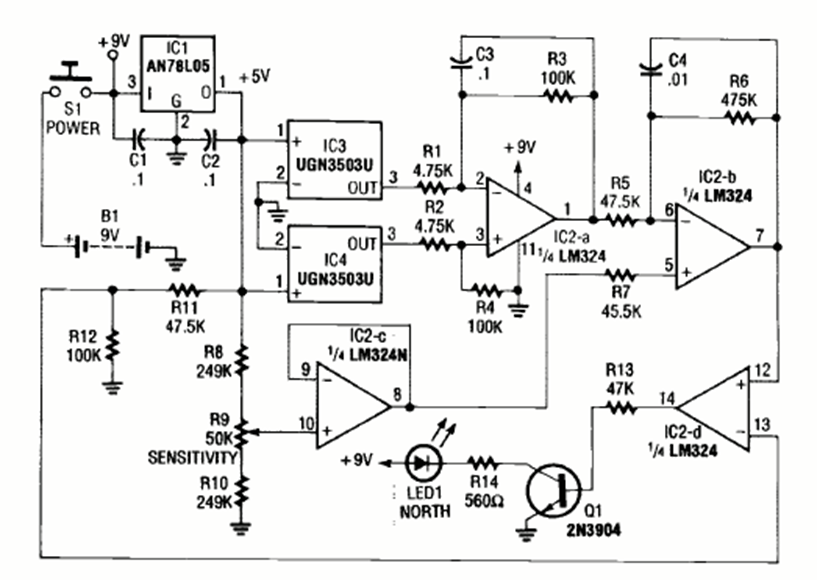

This circuit was found in the June 1991 issue of Radio Electronics magazine. The circuit uses two Hall effect sensors of the time. It can be assembled using modern equivalents.
| Clique na imagem para ampliar |
Electronic Compass (CB25382E)
