Dual Synchronous Binary Counter (CB25444E)

Details
Written by: Newton C. Braga

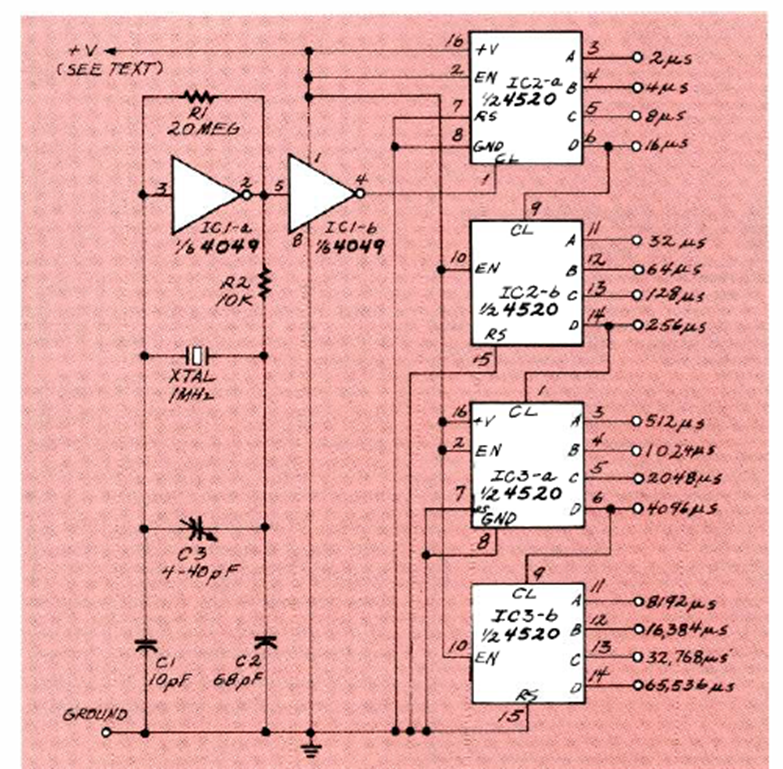

This circuit was found in the February 1992 issue of Radio Electronics magazine. The circuit provides stepped frequencies as shown in the diagram.
