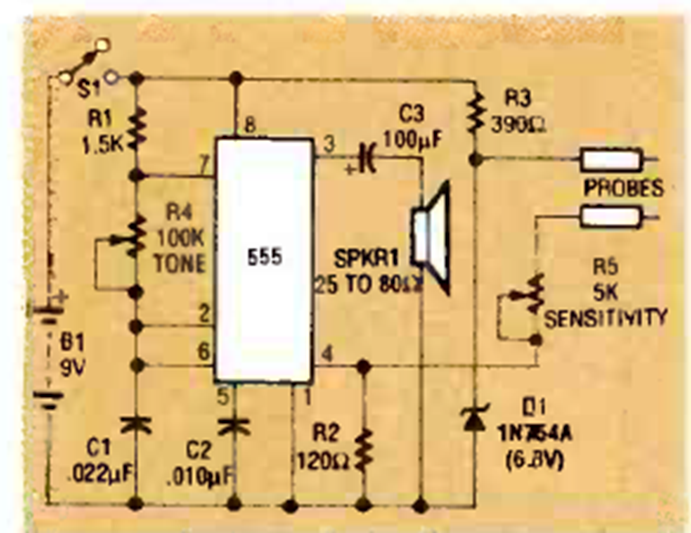

555 Continuity Tester (CB25532E)

This simple 555 component tester was found in the November 1992 issue of Radio Electronics magazine. The circuit is powered by 6 to 12 V batteries.
