741 Harmonic Distortion Meter (CB25605E)

Details
Written by: Newton C. Braga

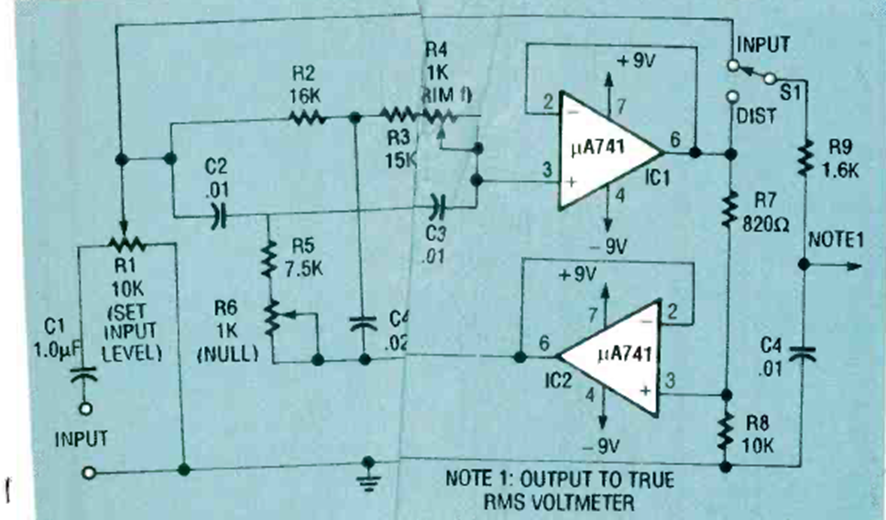

Found in the August 1993 Electronics Now magazine, this circuit employs two symmetrical source 741 op-amps. The output is fed to a true RMS measurement circuit.
