table divider by 2 (CB25675E)

Details: Written by: Newton C. Braga

Bis

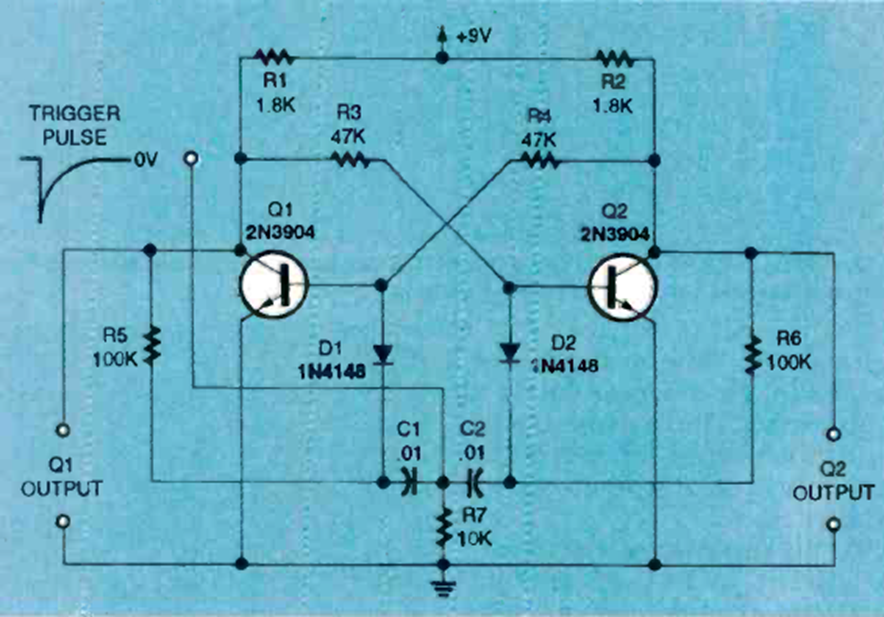

This two-transistor circuit was found in the January 1994 issue of Electronics Now magazine. The circuit is compatible with both TTL and CMOS logic.
