Basic Bass Controls (CB25824S)

Details
Written by: Newton C. Braga

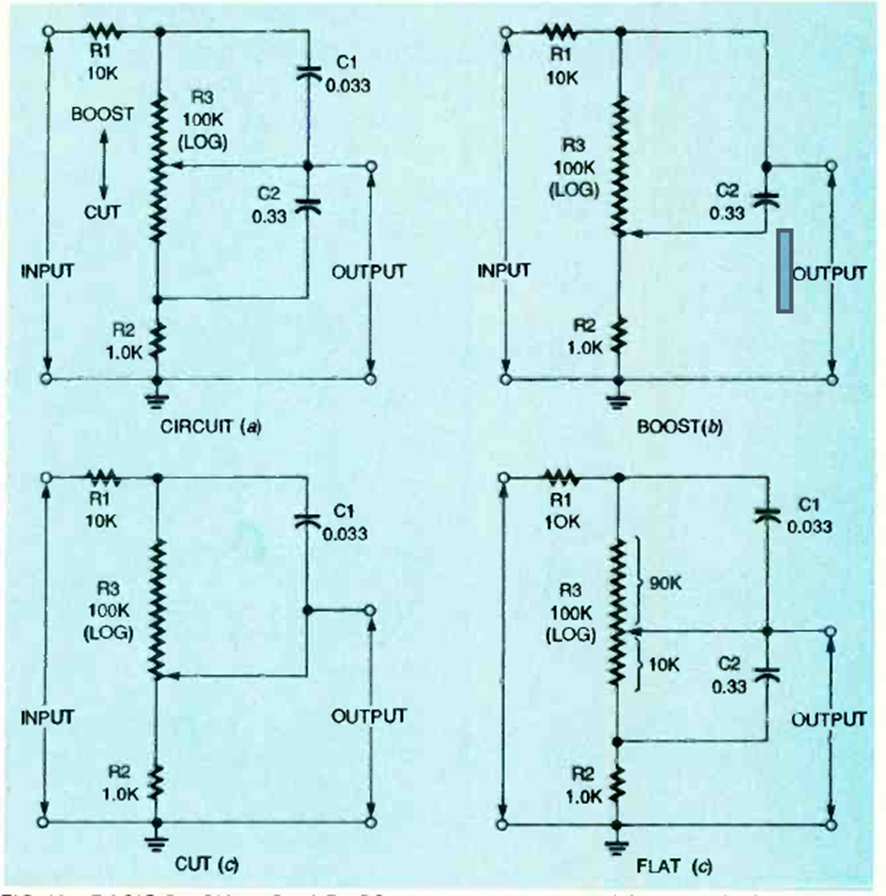

These basic bass controls were obtained from an article in Electronics Now magazine in February 1995. They are basic passive circuits in (a) basic tone, (b) boost, (c) cut, and (d) flat response.




| Clique na imagem para ampliar |
