Inverting amplifier LM741 (CB25917E)

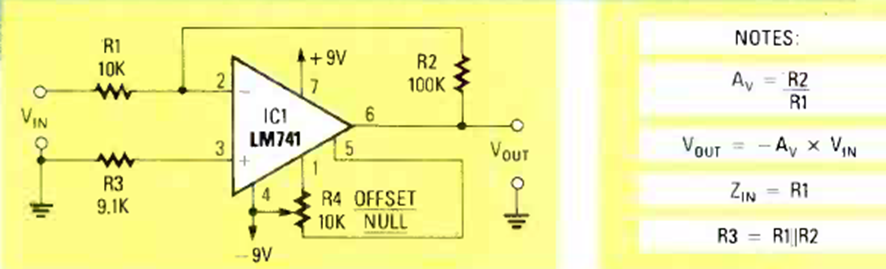

The figure shows how to implement an amplifier with gain 10 using the operational amplifier LM41. The circuit is from a publication from May 1989.

| Clique na imagem para ampliar |
