XR2206 Function Generator (CB25703E)

Details
Written by: Newton C. Braga

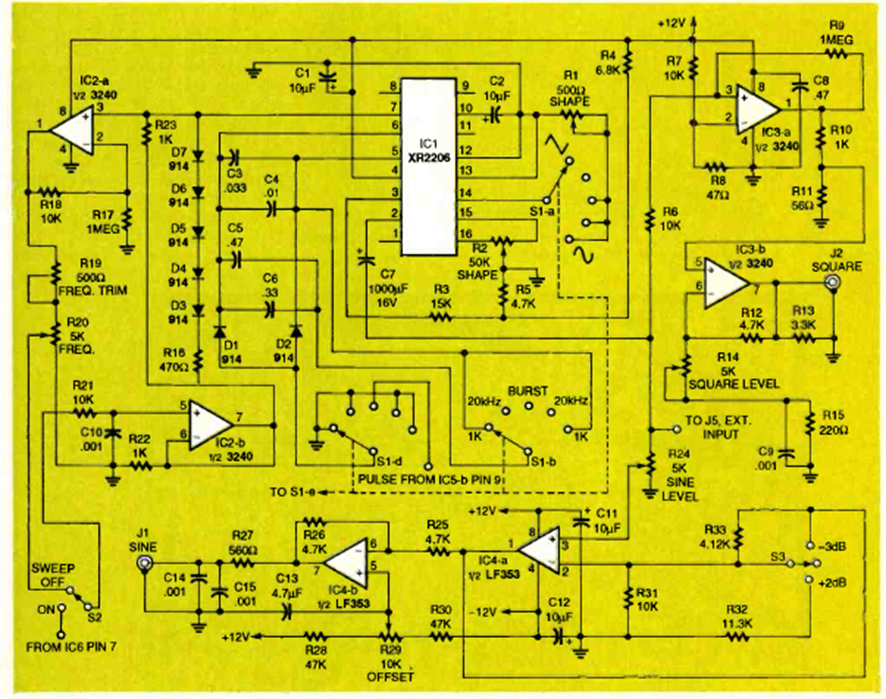

This 5-band function generator circuit was found in the April 1994 Electronics Now magazine. The circuit has three possible waveforms and employs additional operationals.
