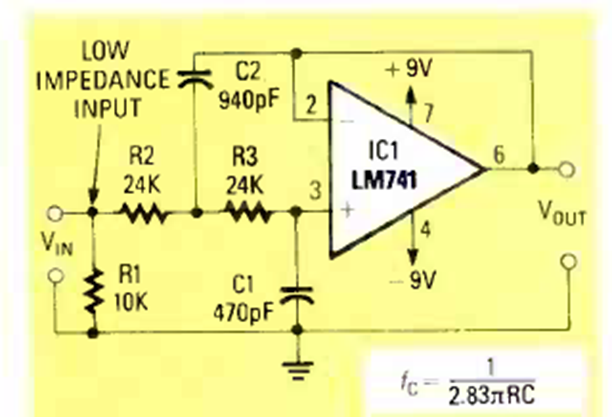

This circuit was found in the May 1989 issue of Radio Electronics magazine. The components can be changed to operate at other frequencies. The circuit requires a dual power supply.
LM741 Second-Order Low-Pass Filter (CB25931E)
- Details
- Written by: Newton C. Braga
