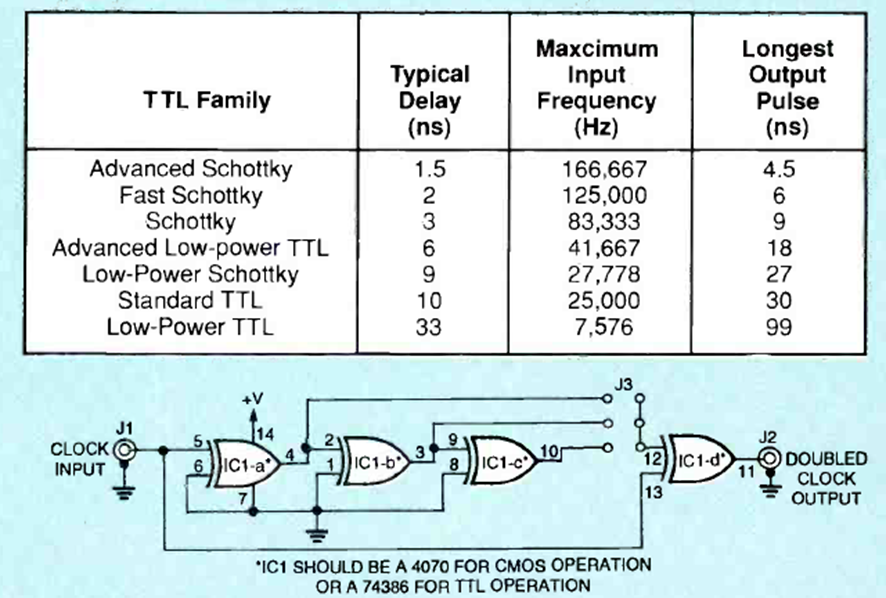

We found this circuit in the November 1994 issue of Electronics Now magazine. It doubles the frequency of a digital signal according to the logic used. The circuit can be used to listen for “earthquakes.”
| Clique na imagem para ampliar |
Frequency Doubler (CB25778E)
- Details
- Written by: Newton C. Braga
