Variable Wien Bridge Oscillator (CB25964E)

Details
Written by: Newton C. Braga

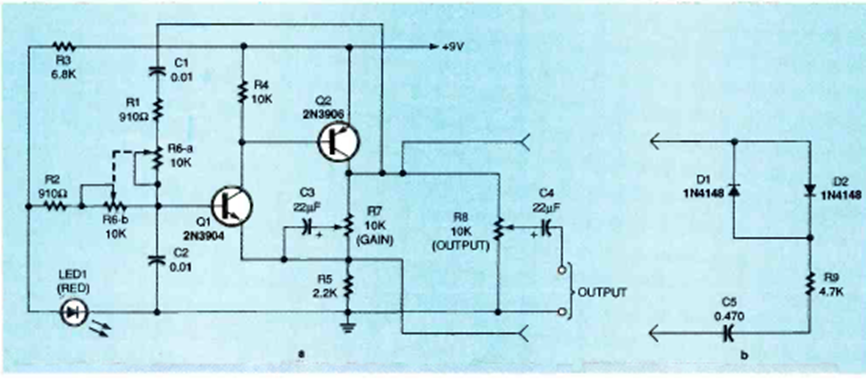

Generating sinusoidal signals from 1.5 to 15 kHz, this oscillator uses common complementary transistors. The circuit was found in the December 1995 issue of Electronics Now magazine.
